Neodymium disc magnets are some of the strongest permanent magnets available today. Their strength often leaves people wondering how much force they can actually generate. In this article, we'll explore the incredible power of neodymium disc magnets, their applications, and answer the question: "How strong are neodymium disc magnets?"
Understanding Neodymium Disc Magnets

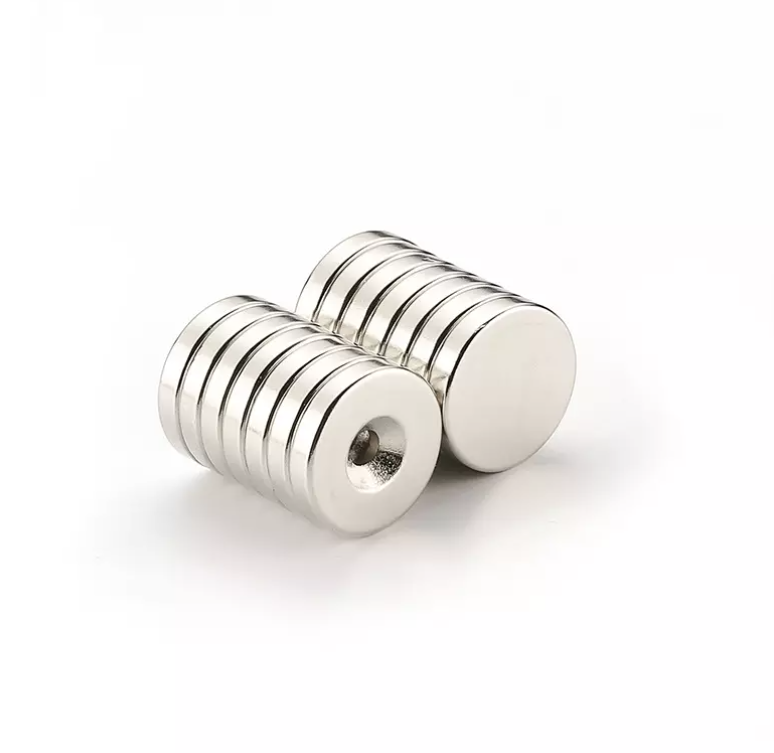

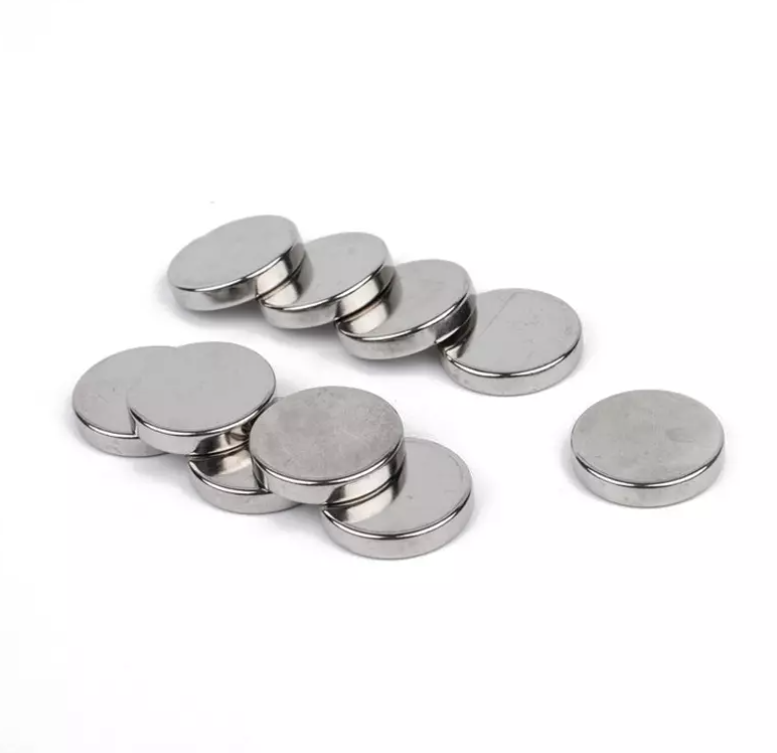

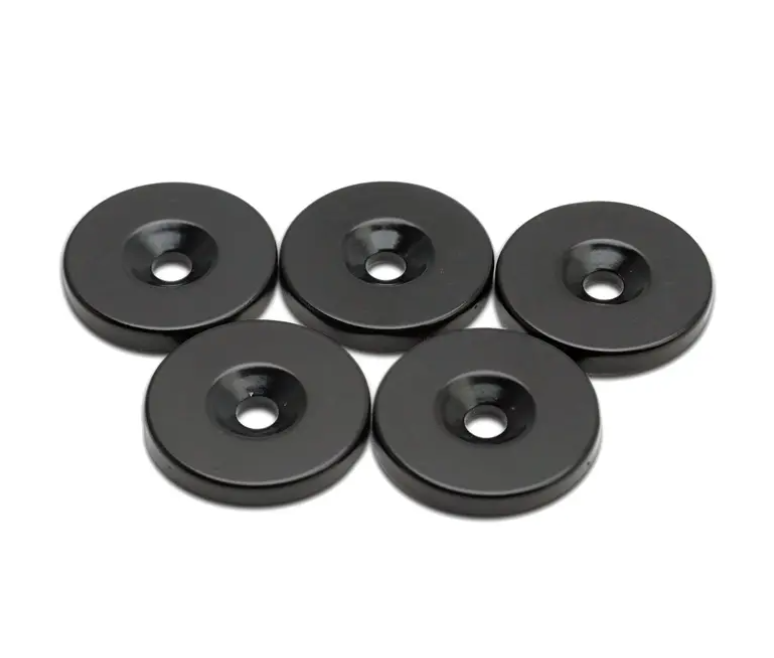

What Are Neodymium Disc Magnets?
Neodymium magnets, made from an alloy of neodymium, iron, and boron (NdFeB), are known for their strength. These magnets are a type of permanent magnet, meaning they retain their magnetism without an external power source. Among all permanent magnets, they are the strongest available, making them highly sought after for various applications.
These magnets often come in two common shapes: discs and cylinders. Both forms offer strong magnetic fields, though their uses vary depending on size and strength.
The strength of neodymium disc magnets comes from their high magnetic energy product (BH)max. This measurement represents the magnet's ability to produce a powerful magnetic field in a compact size. It's one reason why they are so much stronger than other types of magnets, like ferrite magnets.
To measure strength, neodymium magnets are assessed based on magnetic field strength (measured in Tesla) and energy product (measured in MGOe). For example, high-grade neodymium magnets, such as N52, can produce a field strength up to 1.4 Tesla, much stronger than the Earth's magnetic field.
The key to their remarkable strength lies in the use of rare-earth elements. Neodymium, as a rare-earth metal, plays a significant role in enhancing their magnetic properties, making these magnets incredibly powerful for their size.
Key Factors Determining the Strength of Neodymium Disc Magnets
What Is the Magnetic Field Strength of Neodymium Disc Magnets?
Magnetic field strength is typically measured in Tesla (T) or Gauss (G). One Tesla is equal to 10,000 Gauss. These units tell us how strong a magnet's magnetic field is.
Neodymium disc magnets can produce field strengths ranging from 0.5 to 1.4 Tesla, which is far stronger than the Earth's magnetic field of 0.00005 Tesla. This makes them incredibly powerful, even at small sizes.
What Is the Maximum Energy Product (MGOe) of Neodymium Magnets?
The energy product (MGOe) indicates how much magnetic energy a magnet can store. The higher the MGOe, the stronger the magnet.
Neodymium magnets are graded based on their energy product, ranging from N35 to N52. For example, N52 magnets are among the strongest, offering an energy product of 52 MGOe, making them highly efficient and powerful compared to lower grades like N35, which has a lower energy product.
Pull Force: How Much Weight Can a Neodymium Disc Magnet Hold?
Pull force refers to the amount of weight a magnet can hold. This force is typically tested by measuring how much weight is required to detach the magnet from a steel surface.
Here are some examples of pull force based on size:
● A small 10mm x 5mm neodymium disc magnet can hold around 2kg (4.4 lbs).
● A larger 50mm x 50mm x 25mm N52 magnet can pull 100kg (220 lbs).
● Industrial-strength magnets can hold over 500kg (1100 lbs).
Pull force increases with the size and grade of the magnet. Larger magnets and higher-grade neodymium magnets, like N52, offer much stronger pull force than smaller or lower-grade magnets.
How Neodymium Disc Magnets Compare to Other Types of Magnets
How Do Neodymium Disc Magnets Compare to Ferrite Magnets?
When comparing neodymium disc magnets to ferrite magnets, the difference in strength is remarkable. Neodymium magnets are 7-12 times stronger than ferrite magnets of the same size. This huge difference is why neodymium magnets are often used in applications requiring strong, compact magnets, while ferrite magnets are more suited for low-cost, less demanding uses.
For instance, a small N35 neodymium magnet has significantly more pull force than a ferrite magnet of the same size. The N52 grade, being the strongest neodymium magnet, can produce far more magnetic force than even the best ferrite magnets, making it ideal for high-performance needs.
Why Are Neodymium Magnets So Much Stronger Than Other Magnets?
Neodymium magnets are so much stronger than other magnets due to their composition and structure. They are made from an alloy of neodymium, iron, and boron (NdFeB), which creates a dense and powerful magnetic field.
Unlike other magnets, such as ceramic or samarium-cobalt, which are made of different materials, the combination of these elements gives neodymium magnets superior magnetic strength. The high magnetic energy product (BH)max of NdFeB alloys enables them to generate a much stronger field than other materials, even in a smaller size.
Real-World Examples and Experiments Showing the Strength of Neodymium Disc Magnets
Experiment: How Strong Are Neodymium Disc Magnets in Action?
In an experiment to test the power of neodymium disc magnets, researchers placed a Coca-Cola can between two magnets with opposite poles. Upon releasing them, the magnets crushed the can instantly, showing just how strong they can be. This experiment highlights their immense force.
Another experiment used an apple to demonstrate the magnets' strength. As the magnets were released, they slowly deformed and crushed the apple, eventually breaking it into pieces. These experiments reveal how dangerous neodymium magnets can be if mishandled, as their strength can cause serious harm or damage.
Everyday Applications of Neodymium Disc Magnets
Neodymium disc magnets are found in a wide range of everyday items. Common applications include headphones, MRI machines, motors, refrigerator magnets, and magnetic bearings. Their compact size and powerful strength make them ideal for these tasks.
In industrial settings, neodymium magnets are used in lifting machinery, sensors, and magnetic separators. Their size-to-strength ratio makes them perfect for applications that require strong magnetic fields in a small form, such as lifting heavy loads or separating materials in manufacturing.
Safety and Handling Tips for Neodymium Disc Magnets
Are Neodymium Magnets Dangerous?
Neodymium magnets, while incredibly strong, can also be dangerous if not handled properly. One of the main hazards is the pinching risk when two magnets snap together. The powerful magnetic force can cause fingers or skin to get caught between them, leading to painful injuries.
Additionally, large neodymium magnets have the potential to crush bones or other objects. Their magnetic force can easily crush things with incredible pressure. This is why it is essential to handle them with caution to avoid serious injuries or damage.
How to Safely Handle Neodymium Disc Magnets?
To safely handle neodymium disc magnets, follow these tips:
● Wear gloves: This can help protect your hands from pinching injuries.
● Use tools: When separating magnets, use appropriate tools to avoid getting your fingers caught.
● Store them properly: Keep magnets away from electronic devices like credit cards, pacemakers, and other sensitive items, as the magnetic field can damage them.
By following these simple guidelines, you can ensure safe handling of these powerful magnets and avoid unnecessary risks.
Conclusion
Neodymium magnets offer exceptional strength, with impressive pull force, energy product, and temperature tolerance. Selecting the right grade and size is crucial for different applications. Whether in electronics or industry, these magnets provide unmatched performance. Always remember to prioritize safety and proper handling to avoid risks when working with these powerful magnets.
FAQ
Q: What is the strongest neodymium magnet?
A: The strongest neodymium magnets are N52 grade magnets, offering the highest magnetic energy product of 52 MGOe.
Q: How do I choose the right neodymium magnet for my application?
A: Select based on size, grade, and pull force to meet your specific needs, such as for electronics, lifting, or industrial applications.
Q: Can neodymium magnets lose their strength?
A: Neodymium magnets can lose strength if exposed to high temperatures or physical damage, but under normal conditions, they maintain their strength.
Q: How should I dispose of neodymium magnets safely?
A: Neodymium magnets should be handled carefully during disposal to avoid injury. They can be recycled, but check local guidelines for proper disposal methods.
