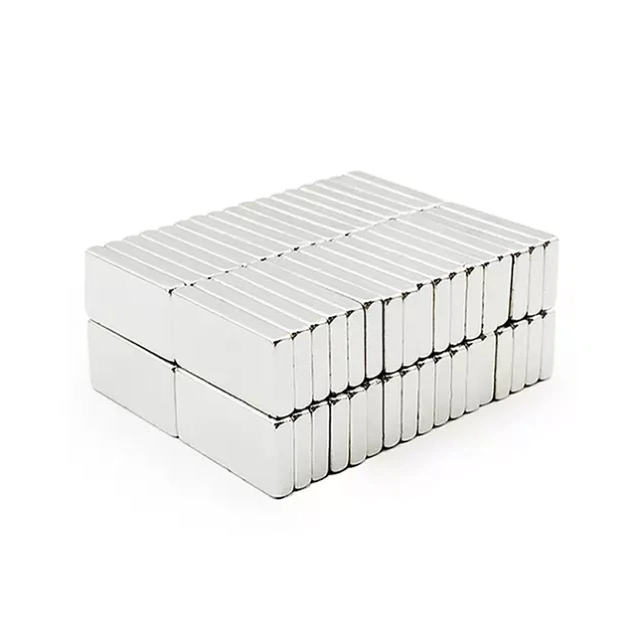

NdFeB magnets, also known as Neodymium Iron Boron magnets, are the strongest and most widely used permanent magnets today. These magnets are essential in various industrial, technological, and consumer applications due to their superior magnetic strength and stability. Two of the most commonly used grades of NdFeB magnets are N35 and N52. Understanding the differences between these two grades is crucial when selecting the right magnet for your application. The choice between N35 magnets and N52 magnets can affect the performance, cost, and efficiency of your products and systems.
Choosing the correct NdFeB magnet grade can have significant implications for your project's success. Whether you're designing electric motors, sensors, or renewable energy solutions, the right magnet grade ensures maximum performance, energy efficiency, and longevity. In this article, we will explore the differences in performance and cost between N35 and N52 magnets, and help you determine which grade is best suited for your specific needs.
What Do Magnet Grades Mean?
Understanding “N” Rating
The "N" in N35 or N52 refers to the magnet's maximum energy product, which is measured in Mega Gauss Oersteds (MGOe). The MGOe value quantifies a magnet's energy density and is an important indicator of its magnetic strength. The higher the MGOe, the more energy the magnet can store. For example, N35 magnets typically have a maximum energy product of around 35 MGOe, while N52 magnets can reach up to 52 MGOe. This higher MGOe value indicates that N52 magnets are capable of producing a stronger magnetic field.
The MGOe value of a magnet directly influences its performance in applications where high magnetic strength is required. N52 magnets are more powerful and efficient, making them ideal for high-performance applications, such as electric vehicles and aerospace. On the other hand, N35 magnets provide a cost-effective solution for applications where extremely high magnetic strength is not necessary.
How BHmax Affects Magnetic Strength Performance
BHmax refers to the product of magnetic field strength (H) and magnetic flux density (B). This value represents the total magnetic energy that a magnet can produce. In simple terms, the higher the BHmax value, the stronger the magnet's field. N52 magnets have a significantly higher BHmax value compared to N35 magnets, meaning they can generate a stronger magnetic field within the same size. This makes N52 magnets ideal for applications that require a high magnetic field, such as motors and generators. In contrast, N35 magnets are well-suited for applications that do not require the highest magnetic strength but still benefit from the advantages of NdFeB magnets.
Side-by-Side Performance Comparison
Magnetic Strength and Field Power
The key difference between N35 and N52 magnets lies in their magnetic strength. N52 magnets are approximately 40% stronger than N35 magnets, making them the superior choice for applications where high magnetic strength is crucial. The increased strength of N52 magnets allows them to provide more magnetic flux in a smaller size, making them ideal for compact designs without sacrificing performance.
N35 magnets, while less powerful, still offer excellent performance for general applications. They are commonly used in industries where standard magnetic strength is sufficient, such as in household appliances and general industrial machinery. However, for high-performance applications, N52 magnets are typically the better choice due to their superior strength and efficiency.
Pull Force & Efficiency in Real World
In real-world applications, N52 magnets have a higher pull force compared to N35 magnets, meaning they can lift more weight in the same size. This increased efficiency allows N52 magnets to perform better in applications that require high magnetic force in a limited space. For example, in motors and actuators, N52 magnets can generate more torque with less energy, improving overall system efficiency.
N35 magnets, on the other hand, provide good performance in applications where high pull force is not required. They are ideal for larger applications where the magnetic force can be spread across a larger area.
Table: Performance Comparison: N35 vs N52
Metric | N35 Magnets | N52 Magnets |
Max Energy Product (MGOe) | ~35 | ~50–52 |
Magnetic Flux (Gauss) | ~11,700 | ~14,200–14,500 |
Relative Holding Force | Moderate | Strong |
Typical Application | General use | High-performance use |
Cost & Value Assessment
Production Cost Drivers
The cost of NdFeB magnets is primarily driven by the cost of raw materials, including neodymium, iron, and boron, as well as the manufacturing process. N52 magnets are more expensive to produce because they require a higher amount of neodymium, which is a rare and costly material. Additionally, the production process for N52 magnets involves more complex steps, resulting in higher manufacturing costs.
N35 magnets, in comparison, are less expensive to produce due to their lower neodymium content and simpler production processes. For applications that do not require the highest magnetic strength, N35 magnets offer a more cost-effective option without sacrificing too much in terms of performance.
Cost Efficiency for Different Order Sizes
When purchasing NdFeB magnets in large quantities, the cost per unit can vary significantly depending on the grade. N52 magnets are generally more expensive than N35 magnets, but for certain applications, the increased performance can justify the higher cost. Businesses should consider the specific requirements of their application and balance the need for magnetic strength with the overall cost.
For large orders of N35 magnets, the lower cost can provide significant savings. However, if the application requires higher magnetic strength, N52 magnets may be the more cost-effective choice in the long run, as they offer better performance and energy efficiency, potentially reducing the need for additional components.
Application Suitability: When to Use N35 or N52
Everyday vs Advanced Applications
N35 magnets are well-suited for everyday applications where high magnetic strength is not required. These include common uses in household appliances, toys, and general industrial machinery. N35 magnets provide a good balance of performance and cost, making them ideal for applications where efficiency is important, but extreme magnetic strength is not a necessity.
On the other hand, N52 magnets are the go-to choice for high-performance applications that demand maximum magnetic strength. These include advanced uses in electric vehicles, aerospace, and renewable energy systems. N52 magnets provide the necessary power to drive high-performance systems, such as high-efficiency motors and sensors.
Space/Weight Constraints & Performance Needs
When space or weight is limited, N52 magnets offer the best solution. Their superior magnetic strength allows them to achieve higher performance in smaller sizes. This is especially important in applications where compact designs are required, such as in robotics, medical devices, and aerospace components. N35 magnets are better suited for larger applications where the size of the magnet is less of a concern, and the cost savings are more critical.
Pros & Cons Summary for Buyers
Strength vs Cost
The main consideration when choosing between N35 and N52 magnets is the trade-off between strength and cost. N52 magnets offer superior strength and performance, but at a higher price point. N35 magnets, while less powerful, are more affordable and suitable for a wide range of standard applications. Buyers should carefully assess their needs to determine which grade provides the best balance of cost and performance for their specific application.
Durability & Handling Considerations
Both N35 and N52 magnets are highly durable and resistant to wear and tear. However, N52 magnets are more likely to lose their magnetization under extreme conditions due to their higher energy density. Proper handling and protection are essential for both grades, especially when exposed to high temperatures or physical stress. It is important to select the right grade based on the operating conditions and potential risks to the magnet's performance.
Conclusion
Choosing the right NdFeB magnet grade depends on the specific requirements of your application. N52 magnets are ideal for high-performance uses that demand maximum magnetic strength and efficiency, while N35 magnets offer a cost-effective solution for everyday applications that do not require the highest magnetic power. Whether you need N35 magnets for general use or N52 magnets for specialized applications, Yueci Magnetic provides a wide range of NdFeB magnets that meet your performance and budget needs.
For more information on how NdFeB magnets can enhance your projects, Contact Us today.
FAQ
Q1: What is the difference between N35 and N52 magnets?
A1: N52 magnets are stronger than N35 magnets, with a higher magnetic energy product (MGOe), making them suitable for high-performance applications.
Q2: Can N35 magnets be used in place of N52 magnets?
A2: N35 magnets can be used for general applications, but for high-performance tasks, N52 magnets provide better strength and efficiency.
Q3: Why are N52 magnets more expensive?
A3: N52 magnets require more neodymium and more advanced manufacturing processes, making them more expensive than N35 magnets.
Q4: What applications use N35 magnets?
A4: N35 magnets are commonly used in household appliances, toys, and general industrial applications where standard magnetic strength is sufficient.
