There is a distinct difference between standard consumer-grade magnets and specialized industrial components. Engineers rarely use finished retail magnets for demanding structural integrations. Instead, they rely on specifically manufactured Magnetic cube blanks. Selecting the wrong magnet shape or finish often leads to catastrophic failure in automated assemblies. Engineers specify cube blanks for several crucial reasons. They offer highly predictable magnetic field orientation. Their flat surfaces ensure secure structural bonding. They also allow for flush integration into tight square housing channels.
This article serves as a technical evaluation guide. Procurement and engineering teams will learn how to match these components to specific industrial applications. We will explore vital sourcing criteria and top use cases. You will also discover strategies to mitigate risks related to dimensional tolerances and harsh environmental exposure.
Key Takeaways
Geometry Matters: Magnetic cube blanks offer uniform surface area, making them ideal for high-shear holding applications and precise sensor alignment.
Top Use Cases: Dominant in precision sensors, workholding jigs, magnetic separation, embedded fastening, and R&D prototyping.
Sourcing Criteria: Procurement must evaluate thermal grades (e.g., standard vs. SH/UH), dimensional tolerances, and post-assembly coating needs.
Implementation Risks: Neodymium blanks are inherently brittle; structural integration must account for impact forces to prevent chipping.
The Engineering Advantage of Magnetic Cube Blanks
Predictable Alignment & Flux
Symmetrical geometry radically simplifies flux density calculations. Engineers can predict magnetic field interactions much more reliably. This exactness guarantees precise North/South pole alignment during automated assembly processes. Cylindrical shapes sometimes rotate unexpectedly in their housings. A cube locks into place without twisting. Automation equipment easily picks and places flat surfaces using vacuum end-effectors. This stability directly reduces calibration times on the factory floor.
Blanks vs. Finished Magnets
We must define "blanks" within an industrial context clearly. They are typically uncoated or minimally coated neodymium or ferrite blocks. Manufacturers do not intend for them to serve as standalone finished products. Instead, they provide a raw platform for custom finishing. You might subject them to over-molding in plastics. Engineers frequently enclose them in specialized potting compounds. This bare-bones approach gives designers complete control over the final exterior protection.
Surface Area to Volume Ratio
Consider the geometry when comparing these components to cylindrical or disc magnets. Cubes maximize the available flat contact area relative to their total volume. This large surface area matters immensely for structural adhesives. Adhesives bond far better to flat planes than to convex curves. They also optimize surface friction when placed in press-fit housings. The unique physical properties of Magnetic cubes give them a significant edge in high-stress mechanical assemblies.

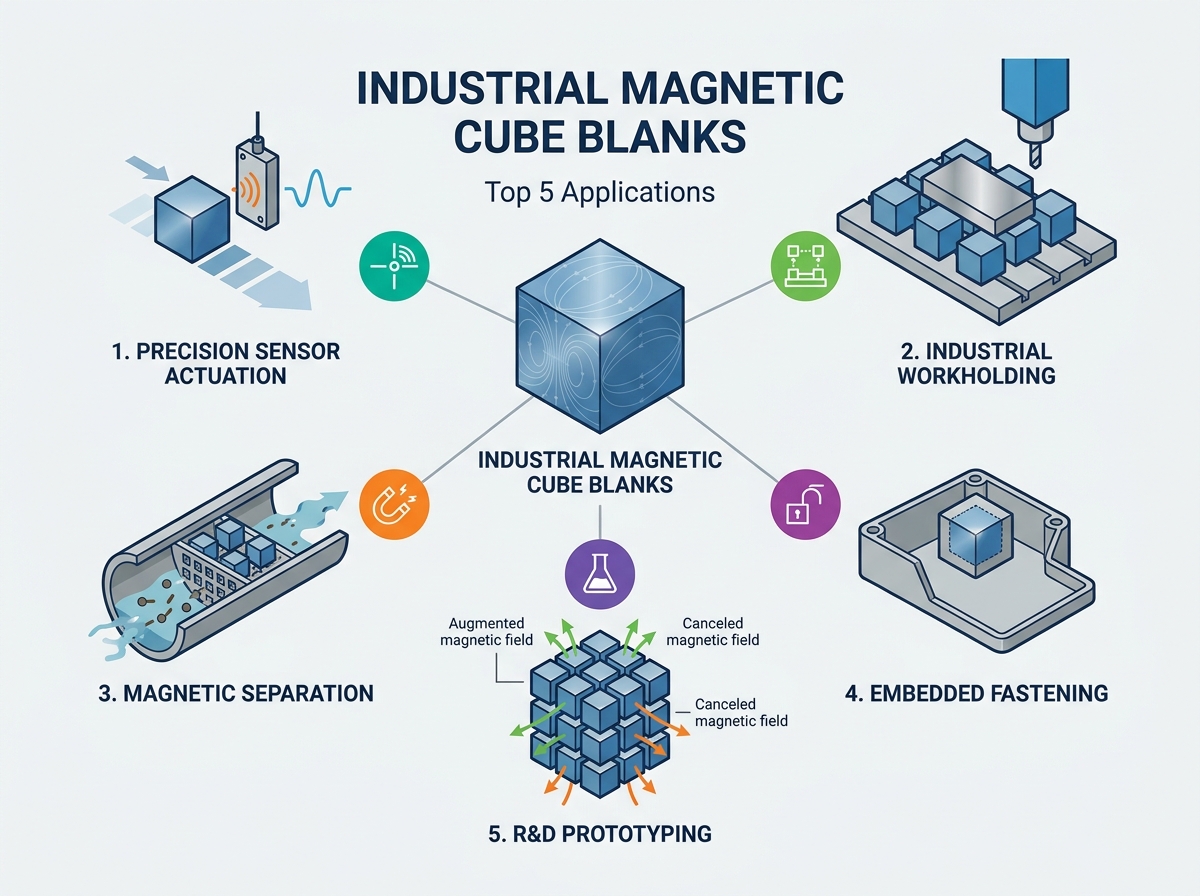

Top 5 Industrial Applications for Magnetic Cube Blanks
Application: Modern automated manufacturing lines rely heavily on proximity and linear sensors. Engineers use magnets to trigger these crucial detection systems reliably.
Why Cubes: Flat faces provide a highly consistent magnetic profile. The sensor's read head detects a uniform field across a wide area. This stability drastically reduces false triggers compared to using curved magnets. Cylinders generate a focal point of flux which fades quickly on the edges. Cubes deliver a broader, more even activation zone.
2. Industrial Workholding and Custom Jigs
Application: Machining, welding, and assembly tasks require securing heavy ferrous components. Custom jigs use embedded magnets to hold these parts firmly in place.
Why Cubes: Flat-faced magnets offer exceptionally high resistance to shear forces. They do not slide easily against flat steel sheets. You can stack them effortlessly. Engineers often arrange them in dense grid matrices. This allows facilities to create custom, scalable holding forces tailored to specific heavy loads.
3. Custom Magnetic Separation and Filtration
Application: Industrial processing plants must extract fine ferrous contaminants. They pull these dangerous metal particles from bulk liquids, powders, or grain flows.
Why Cubes: You can easily array them within stainless steel tubing. They also fit perfectly into custom fabricated grates. Flush stacking maximizes the internal capture field. This dense configuration eliminates magnetic dead zones where contaminants might otherwise escape.
4. Embedded Fastening in Injection Molding
Application: Designers create hidden, wear-free closures for high-end products. These include industrial enclosures, specialized medical devices, and heavy-duty electronics cases.
Why Cubes: Raw blanks are ideal for complex over-molding processes. Their square shape prevents rotational slipping completely. Once the injected plastic cures around them, they become permanently locked in their orientation. Cylinders sometimes twist over time, degrading the magnetic closure alignment.
5. R&D Prototyping and Halbach Arrays
Application: Research labs constantly test advanced magnetic field manipulation. They use these components to prototype highly specialized electric motor designs.
Why Cubes: They are remarkably easy to physically configure. Engineers frequently build Halbach arrays using raw cubes. This arrangement augments the magnetic field on one side. Simultaneously, it cancels the field on the opposite side. Flush-stacking ability makes building these complex arrays straightforward and highly stable.
Application Summary Chart
Application Area
Primary Engineering Benefit
Common Industrial Sector
Sensor Actuation
Uniform flux profile prevents false reads
Automated Manufacturing
Workholding Jigs
High shear resistance and stackability
Metal Fabrication
Magnetic Filtration
Eliminates dead zones in arrays
Food & Chemical Processing
Injection Molding
Prevents rotational slipping in cavities
Medical Devices & Electronics
Halbach Arrays
Seamless flush-stacking manipulation
R&D and Motor Design
Key Evaluation Criteria for Sourcing Cube Blanks
Grade and Thermal Thresholds
Sourcing the correct material grade dictates long-term performance. Standard neodymium grades range from N35 to N52. Higher numbers indicate a stronger maximum energy product. However, temperature plays a critical role. You must map these grades against your expected operating temperatures. High-temperature variants like M, H, and SH are often necessary. They prevent irreversible demagnetization in hot industrial environments.
Neodymium Grade Suffix
Maximum Operating Temperature (°C)
Typical Application Environment
None (Standard N35-N52)
80°C
Climate-controlled interiors
M (Medium)
100°C
Warm industrial machinery
H (High)
120°C
Heavy-duty actuators
SH (Super High)
150°C
High-friction automotive engines
UH (Ultra High)
180°C
Aerospace and demanding thermal zones
Dimensional Tolerances
Precision varies depending on your chosen machining standards. Standard industry tolerances typically sit around ±0.1mm. High-precision mechanical applications demand tighter tolerances, often reaching ±0.05mm. Tight tolerances are absolutely critical for structural press-fit applications. If a cavity is too small, forcing the magnet causes immediate stress fractures. If the cavity is too large, the component rattles and eventually fails.
Custom Coating Pathways
Buyers purposefully opt for raw Magnetic Cube Blanks to control the final protective layer. Post-assembly coating ensures the entire finished unit remains protected. Engineers often apply custom Parylene, specialized epoxy, or zinc. These finishes meet highly specific chemical resistance requirements. They also ensure strict moisture compliance standards for underwater or outdoor equipment.
Best Practices for Sourcing
Always request material certification sheets from your supplier.
Verify the direction of magnetization before approving a bulk order.
Test adhesive compatibility on uncoated blanks in your own facility.
Implementation Risks and Handling Considerations
Brittleness and Chipping
You must address the physical reality of neodymium fragility. These materials are incredibly brittle despite their strong pulling force. High-impact assembly methods will destroy them. Dropping them or letting them snap together causes immediate shattering. We highly recommend potting them in resilient epoxies. Designing specialized housings also absorbs mechanical shock effectively.
Common Mistakes in Handling
Using metal hammers directly against bare magnetic faces.
Press-fitting blanks into non-chamfered cavities.
Allowing multiple loose blanks to jump and collide.
Assembly Safety
Large magnetic volumes pose severe pinch hazards to workers. A sudden attraction between two pieces can easily crush fingers. You should mandate non-magnetic jigs during mass production. Specialized handling procedures are non-negotiable. Only trained personnel should unpack and assemble bulk quantities. Keep non-essential steel tools far away from the assembly station.
Interference Mitigations
Strong fields disrupt nearby equipment. You must plan for proper magnetic shielding. Applications near sensitive electronics require careful flux containment. Use soft iron plates to redirect stray fields away from circuit boards. Furthermore, protect personnel by establishing strict safety perimeters. People with pacemakers must never approach the unshielded assembly zones.
How to Spec Your Magnetic Cubes for Production (Next Steps)
Shortlisting Logic
Move from initial evaluation to final purchase using a logical framework. Follow these precise sequential steps:
Define the exact holding force or flux density required for your assembly.
Determine the maximum peak operating temperature of the final environment.
Set strict spatial constraints based on your physical housing design.
Select the optimal material grade and required dimensional tolerance.
Prototyping to Volume
Avoid ordering custom dimensions immediately. We advise starting your proof-of-concept phase with off-the-shelf blanks. Standard sizes allow for rapid, cost-effective testing. Validate your holding force and adhesive compatibility first. Once you finalize the physical parameters, you can safely commission custom sizes. You can also specify unique magnetization directions for high-volume production runs.
Actionable Next Step
Do not guess when specifying these critical components. Encourage your team to consult directly with a dedicated magnetics engineer. Request a sample pack of various grades and sizes. Use these samples to test real-world tolerances. Verify the actual shear holding strength on your specific target materials before full production.
Conclusion
Summary: Raw magnetic blanks serve as highly precise engineering components, not just basic raw materials.
Final Thought: Matching the exact grade, tolerance, and assembly method to your specific application prevents disastrous failures. It guarantees long-term operational reliability and structural integrity.
Call to Action (CTA): Contact our technical sales team today for custom production quotes. Download our specific magnet grade selection chart to refine your engineering specifications.
FAQ
Q: Can magnetic cube blanks be machined or cut?
A: No. Neodymium and ferrite are extremely brittle and highly prone to catching fire if machined conventionally. They must be cast and ground to size by the manufacturer before magnetization.
Q: How do I know which direction a magnetic cube is magnetized?
A: Standard cubes are typically magnetized through their thickness (axially), meaning the poles are on opposite flat faces. However, custom multi-pole or diagonal magnetizations must be explicitly requested.
Q: Are uncoated magnetic blanks safe for outdoor industrial use?
A: No. Raw neodymium oxidizes and corrodes rapidly in the presence of moisture. Blanks must be potted, sealed, or custom-coated (e.g., epoxy or Ni-Cu-Ni) prior to environmental exposure.
