The electric vehicle (EV) industry has experienced remarkable growth in recent years, driven by the increasing demand for sustainable and eco-friendly transportation solutions. As the world shifts toward greener alternatives to traditional combustion engine vehicles, EVs have become a key component in reducing carbon emissions and improving energy efficiency. One of the critical technologies that enable EVs to perform efficiently and powerfully is the NdFeB magnet (Neodymium Iron Boron magnet). These high-performance magnets, due to their superior magnetic properties, play a pivotal role in electric motors, which are at the heart of EV propulsion systems. Specifically, Neodymium Arc/Tile Magnets are widely used in EV motor applications, where their unique shapes help enhance motor efficiency and performance. As a result, NdFeB magnets are indispensable in the development of electric drive systems, contributing to better energy efficiency, lighter weight, and increased range of electric vehicles.
1.What are NdFeB Magnets?

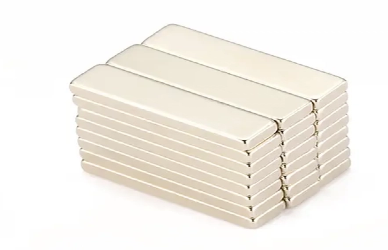

Neodymium Iron Boron (NdFeB) magnets are a type of rare-earth permanent magnet made from an alloy of neodymium (Nd), iron (Fe), and boron (B). Discovered in the 1980s, these magnets are among the strongest permanent magnets available today. Their combination of materials results in exceptional magnetic properties, making them essential in high-performance applications such as electric motors, wind turbines, and consumer electronics. The unique characteristics of NdFeB magnets are attributed to the high magnetic strength of neodymium and the stability provided by iron and boron.
2.Magnetic Properties
NdFeB magnets are known for their high energy density, meaning they can generate strong magnetic fields relative to their size. This makes them ideal for applications where space and weight are critical factors. Their high magnetic strength allows them to produce powerful forces even in small sizes, which is why they are commonly used in motors, actuators, and sensors. Additionally, NdFeB magnets exhibit excellent temperature resistance, with specific grades capable of operating at elevated temperatures without significant loss of magnetization, which is crucial for their performance in demanding environments like electric vehicle motors.
3.Neodymium Arc/Tile Magnets
In the context of electric motors, NdFeB magnets are often manufactured in specialized shapes, such as arcs or tiles. These shapes are tailored to optimize the efficiency and power output of the motor. Arc-shaped magnets are commonly used in the rotors of motors, as they fit the circular geometry of the motor and enhance the magnetic flux interaction. Similarly, tile-shaped magnets are used for larger motors or where a different magnetization direction is required. These specialized magnet shapes ensure that the motor performs at its best, providing maximum torque and power while minimizing energy loss.
Role of Neodymium Magnets in EV Motors
1.Motor Working Principle
In EV motors, NdFeB magnets create a powerful magnetic field that interacts with the electric current in the motor’s coils, generating rotational force (torque). The rotor, surrounded by NdFeB magnets, and the stator, with electrical windings, work together to convert electrical energy into mechanical movement, powering the vehicle. The strong magnetic field of NdFeB magnets enables precise control and efficient motor performance.
2.Improved Efficiency and Energy Density
NdFeB magnets enhance motor efficiency by offering high energy density, meaning they produce stronger magnetic fields in a compact size. This reduces energy loss and allows the motor to operate more efficiently, improving the EV's energy consumption and extending its range on a single charge.
3.Lightweight and Enhanced Performance
NdFeB magnets are also lightweight, allowing for reduced motor weight without sacrificing power. This contributes to a lighter vehicle, improving energy efficiency, handling, and overall performance—key factors in optimizing EV design for maximum range and driving experience.
Applications of Neodymium Arc/Tile Magnets
1.In EV Motors
Neodymium Arc/Tile magnets are essential in electric vehicle (EV) motors, particularly for optimizing performance. Their unique shapes—arc or tile—fit perfectly into the rotor design, ensuring efficient magnetic flux interaction with the stator. This results in enhanced torque, smooth rotation, and overall high motor efficiency. By using these specialized magnets, EV motors can generate stronger magnetic fields while maintaining compact size, contributing to both improved motor power output and reduced energy loss. This is crucial for increasing EV range and performance without adding unnecessary weight to the vehicle.
2.Cross-industry Applications
Beyond EV motors, Neodymium magnets, including Arc/Tile shapes, are widely used in various industries. In wind power, they help enhance the efficiency of generators by providing strong magnetic fields to drive turbines. In household appliances such as refrigerators and air conditioners, Neodymium magnets are used in compressors and motors to improve performance and energy efficiency. Additionally, in power tools, these magnets enable smaller, more powerful motors, offering better performance in tools like drills and saws. The common thread across all these applications is the ability of NdFeB magnets to provide high magnetic strength in a compact form, making them a versatile solution for boosting efficiency and performance in a wide range of industries.
Why Are Neodymium Magnets Critical for Electric Vehicles?
1.Continuous Performance Improvement
Neodymium (NdFeB) magnets are essential for enhancing the performance of electric vehicles (EVs). Their high energy density and magnetic strength allow EV motors to operate more efficiently, generating more power with less energy consumption. This leads to improved driving range as the vehicle can travel further on a single charge. Additionally, NdFeB magnets contribute to higher power output, which enhances acceleration and overall driving experience. By increasing motor efficiency, NdFeB magnets play a critical role in continuously improving EV performance.
2.Meeting Market Demand
As the global electric vehicle market continues to grow, the demand for high-performance magnets, like NdFeB, is skyrocketing. EV manufacturers are constantly seeking ways to improve the power, efficiency, and weight of their vehicles, and NdFeB magnets are key to meeting these challenges. Their ability to deliver powerful magnetic fields in compact, lightweight designs makes them a critical component in the next generation of electric vehicles, helping manufacturers meet consumer expectations and market demands for more efficient, high-performance EVs.
3.Driving the Green Energy Transition
NdFeB magnets are pivotal in supporting the global shift towards zero-emission electric vehicles. By enabling high-efficiency electric motors, these magnets contribute to the overall reduction of carbon emissions. As EVs become more widespread, the need for energy-efficient solutions grows, and NdFeB magnets play a crucial role in ensuring that electric vehicles remain a viable and sustainable alternative to traditional internal combustion engine vehicles. The efficiency and power of NdFeB magnets are helping to drive the green energy transition by supporting cleaner, more sustainable transportation solutions.
Challenges and Future Outlook
1.Rare Earth Supply Issues
The production of NdFeB magnets faces challenges due to the scarcity of rare earth elements, especially neodymium. These materials are mainly sourced from a few regions, with China dominating supply. This concentrated supply chain makes the availability of rare earth elements vulnerable to geopolitical and market fluctuations, which can impact production costs and availability of NdFeB magnets.
2.Sustainability
Rare earth mining raises environmental concerns, such as habitat destruction and pollution. To address this, recycling and reuse technologies are being explored. Recycling NdFeB magnets from used electronics and motors can reduce the need for new mining, lower environmental impact, and cut production costs. Advancements in magnet recycling will play a key role in making production more sustainable.
3.Future Technology Development
Ongoing research is focused on improving NdFeB magnets' efficiency, strength, and temperature resistance. New manufacturing methods may make production more cost-effective and eco-friendly. As technology advances, NdFeB magnets will continue to enhance EV motor performance, offering better efficiency and longer ranges, contributing to the evolution of the electric vehicle industry.
FAQ: Common Questions About Neodymium Magnets and EV Motors
1.What are NdFeB Magnets, and how do they differ from other types of magnets?
NdFeB magnets (Neodymium Iron Boron magnets) are rare-earth magnets made of neodymium (Nd), iron (Fe), and boron (B). Compared to traditional magnets like AlNiCo or ferrite, NdFeB magnets offer significantly higher magnetic energy density and are used in high-performance applications like EV motors.
2.Why are Neodymium Arc/Tile Magnets so important in EV motors?
Neodymium Arc/Tile Magnets are essential for EV motors due to their high magnetic strength and energy density. Their specific shapes (arc or tile) help optimize the motor’s efficiency, improve power output, and reduce energy loss, making them ideal for electric vehicles.
3.Do Neodymium Magnets in EV motors affect the vehicle’s driving range?
Yes, NdFeB magnets enhance the efficiency of the electric motor, allowing for better utilization of the battery's energy, which helps extend the EV’s driving range.
4.Will the supply of rare earth elements impact the production of Neodymium Magnets?
Yes, NdFeB magnets rely on rare earth elements, which are primarily sourced from a few regions. The supply chain can be affected by geopolitical or market fluctuations. Future efforts may focus on sustainable mining practices, recycling, and alternative materials to ensure a stable supply of rare earths.
Conclusion
NdFeB magnets play a critical role in modern electric vehicle (EV) drive technology. Their exceptional magnetic strength, high energy density, and lightweight properties are essential for enhancing the efficiency, power output, and overall performance of EV motors. As the global demand for electric vehicles continues to rise, the importance of NdFeB magnets in achieving longer driving ranges and higher motor efficiency will only grow. Looking ahead, we can expect continued innovation in both electric vehicle and magnet technology, with advancements in magnet materials, manufacturing techniques, and sustainability practices. These developments will further revolutionize EV performance, making them more efficient, affordable, and environmentally friendly, driving the future of sustainable transportation.
