Engineers often face a difficult challenge in modern motor design. They must combine complex magnetic fields in high-temperature environments. Standard magnetic components frequently fail under these extreme conditions. A strategic design choice can solve this problem. Transitioning from segmented magnet assemblies to a single radial ring changes everything. You must evaluate upfront tooling costs alongside long-term assembly efficiencies. This article provides a transparent breakdown of the N35SH magnetic grade. We explore the underlying mechanics of the radial magnetization process thoroughly. You will learn how to determine if this specific configuration fits your project. We assess both thermal constraints and mechanical performance requirements. By the end, you can make a highly informed engineering decision. We aim to clear up common manufacturing misconceptions. Let us dive into the specifics of this powerful magnetic solution.

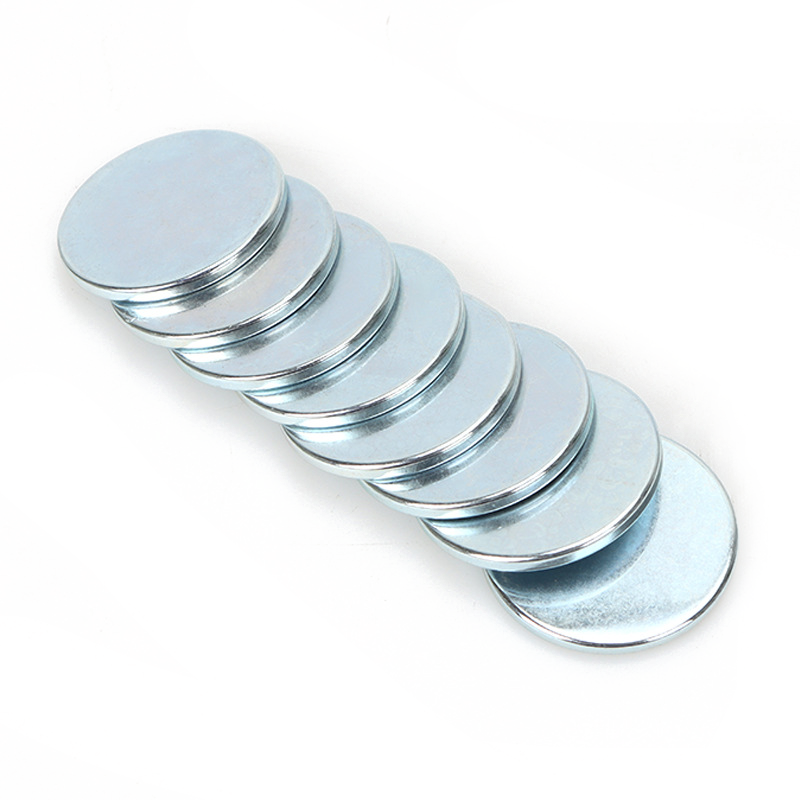

You must understand the exact material properties before specifying any magnetic component. A Radial Magnetization N35SH Magnet requires a detailed look at its naming convention. The "N35" designation indicates the overall magnetic strength. It specifically refers to a Maximum Energy Product (BHmax) between 33 and 35 MGOe. This value determines how much mechanical work the magnet can perform. The "SH" stands for Super High. It denotes a high intrinsic coercivity rating. The Hcj value sits at 20 kOe or higher. This specific chemical composition allows the material to operate up to 150°C. It does this without experiencing significant permanent loss of magnetic properties.
The radial magnetization process differs vastly from standard manufacturing techniques. We must contrast it against axial or diametrical magnetization. Standard methods push the magnetic field in one straight, parallel direction. Radial alignment is far more complex. During the powder pressing phase, manufacturers use a specific anisotropic alignment process. Strong orienting coils align the microscopic magnetic domains outward from the center. Conversely, they can align them inward toward the center. This specialized technique creates a uniform radial field across the entire circumference.
Common geometries for this process remain strictly limited. You will predominantly see continuous rings and cylinders. Manufacturers occasionally produce arc segments using this exact method. Engineers must pay close attention to custom tolerances. Sintered NdFeB materials possess inherent structural brittleness. The pressing and sintering process causes shrinkage. Tight mechanical tolerances require careful diamond grinding afterward. You cannot simply machine these parts using standard steel tools.
Engineers must evaluate thermal reliability carefully when designing rotating machinery. The demagnetization risk represents a strict physical reality. We track this behavior using B-H curves. Standard N35 material degrades rapidly once ambient temperatures exceed 80°C. The magnetic flux drops significantly. However, the N35SH grade maintains field integrity up to 150°C. Intrinsic coercivity (Hcj) acts as a critical safety margin here. Electric motors generate strong opposing magnetic fields during heavy loads. A high Hcj rating prevents these opposing fields from causing irreversible demagnetization.
You must make application-specific selections based on real-world thermal data. Standard N35 works perfectly for low-cost sensors. It suits ambient temperature environments exceptionally well. N35SH becomes absolutely mandatory for demanding mechanical applications. Servo motors require this thermal stability. High-speed rotors generate intense internal eddy current heat. Industrial actuators also experience similar thermal spikes during rapid cycling.
We must issue a transparent warning regarding temperature coefficient limitations. Even SH grades experience reversible losses as ambient temperatures rise. Your system design must account for a lower magnetic flux density at 150°C. You will not get the same performance seen at a room temperature of 20°C. Engineers must calibrate air gaps and coil windings accordingly.
| Feature | Standard N35 Grade | N35SH Grade |
|---|---|---|
| Max Operating Temp | 80°C (176°F) | 150°C (302°F) |
| Intrinsic Coercivity (Hcj) | ≥ 12 kOe | ≥ 20 kOe |
| Primary Application | Ambient sensors, simple latches | Servo motors, high-speed rotors |
| Thermal Degradation | Rapid past 80°C (Irreversible) | Stable up to 150°C (Reversible only) |
Diametrical magnetization serves as the standard, low-cost alternative for cylindrical applications. The magnetic field passes straight through the diameter of the component. You get a single North pole on one side. A single South pole sits on the exact opposite side. This manufacturing process is much cheaper to produce. It requires no specialized radial tooling or complex orienting fixtures.
The case for radial magnetization is incredibly strong for advanced engineering. It enables programmable multi-pole configurations directly on the continuous component. You can place 4, 8, or 12 distinct poles on a single ring. This multi-pole capability transforms motor design entirely.
The performance outcomes are highly beneficial to the end user. You achieve much smoother motor rotation during operation. This multi-pole radial setup significantly reduces cogging torque. Engineers can design much tighter air gaps between the rotor and stator. You also get an optimized, highly uniform magnetic flux distribution.
The assembly outcomes save significant manual labor and reduce factory errors. This continuous design eliminates gluing individual diametrical segments to a steel rotor shaft. It removes multiple potential mechanical failure points. Rotor balancing issues decrease dramatically because the continuous ring is perfectly symmetrical.
Let us closely examine tooling requirements and lead times. Manufacturers require custom orienting fixtures for every new production run. They also need highly specific magnetizing coils. Every unique dimension and pole count demands a completely new tooling setup. This creates distinct lead time expectations. Prototyping takes much longer than ordering standard diametrical blocks. Mass production speeds up significantly once the tools exist.
Size and dimension constraints require strict engineering attention. Wall thickness presents a major manufacturing limitation. If a ring is too thin, it easily cracks during the extreme heat of sintering. If a ring is too thick, uniform radial orientation becomes nearly impossible. Magnetic fields struggle to penetrate deep material evenly. Aspect ratio considerations also apply here. You must balance the total cylinder length against the outer diameter carefully.
Surface protection remains vital for long-term reliability. Sintered NdFeB is highly susceptible to rapid oxidation and corrosion. You must evaluate protective coatings based strictly on the operating environment.
| Production Phase | Estimated Timeline | Primary Constraint |
|---|---|---|
| Tooling Design & Fabrication | 3 to 5 Weeks | Custom coil winding and fixture machining. |
| Initial Prototyping | 2 to 4 Weeks | Pressing optimization and shrinkage calibration. |
| Mass Production | 4 to 6 Weeks | Sintering capacity and precision grinding time. |
You need a solid decision framework to shortlist this specific component. We recommend using a strict success criteria checklist. First, does the continuous operating temperature consistently exceed 80°C? Second, does it stay safely under the 150°C threshold? Third, does the total assembly budget justify the initial radial tooling cost? You must calculate if it saves enough on manual labor and gluing. Finally, is cogging torque reduction a primary performance metric for your end product?
Sometimes you must pivot to alternative magnetic solutions. If operating temperatures exceed 150°C, step up to UH grades. The UH series handles up to 180°C safely. EH grades handle up to 200°C. If you need maximum magnetic strength over temperature, consider N45SH or N50M. Be aware these choices require a complete thermal redesign. If your production volume falls below 500 units, reconsider entirely. Segmented arc assemblies may be more cost-effective. Initial radial tooling expenses often outweigh the assembly benefits for low volumes.
Engineers should take specific next-step actions immediately. Request a specific B-H curve chart from your supplier. Ask for demagnetization data at your exact maximum operating temperature. Prepare your CAD files meticulously before initial outreach. Indicate precise pole spacing requirements. Map out the acceptable transition zones clearly on the drawing. Specify your exact environmental coating requirements directly in the manufacturing notes.
The strategic value of this magnetic solution is remarkably clear. It is a highly specialized, reliable component designed for demanding applications. It serves precision thermal environments perfectly. Assembly simplicity and smooth torque generation remain paramount here. You eliminate messy gluing processes and improve rotor balance instantly. We strongly recommend moving from conceptual evaluation to physical prototyping. Share your thermal profiles with an experienced magnet manufacturer today. Provide your exact dimensional tolerances early in the discussion. This action validates tooling feasibility before you commit major engineering resources.
A: No. Sintered NdFeB is extremely brittle. Machining destroys the custom radial magnetic orientation and removes the protective coating, leading to rapid corrosion.
A: Typically, 1.5mm to 2mm is the lower limit to prevent structural failure during pressing and sintering, though this varies by supplier and outer diameter.
A: Engineers typically use magnetic viewing film (pole viewer paper) or a Gauss meter to map the transition zones and confirm the multi-pole radial pattern matches the specification.
A: Yes. The addition of heavy rare earth elements (like Dysprosium or Terbium) required to achieve the "SH" high-coercivity rating increases the raw material cost.
